details van de producten

Huis Producten

Security Airport Immigration Inspection Check AB Turnstile Gate M3620-AB

Name: Security Airport Immigration Inspection Check AB Turnstile Gate M3620-AB
Brand: Turboo Automation Co., Ltd
SKU: M3620-AB
Availability: InStock

Merknaam:	Turboo
Modelnummer:	M3620-AB
MOQ:	1 st
Prijs:	negotiable
Leveringstermijn:	7-15 werkdagen
Betalingsvoorwaarden:	L/C, T/T

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Certificering:

CE, ISO9001,FCC,RoHS,etc.

Maat:

3200*210*1020mm

Materiaal:

2,0 mm SPCC met poedercoating

Pasbreedte:

600-900 mm

Sensor:

Lichtgordijn 80 punten + 20 paar sensoren

Bestuurder:

Servoborstelloos 100W

Controleur:

Servobesturing + sensorlogicabesturing

Stroom:

220W

Verpakking Details:

Houten kistpakket

Levering vermogen:

1000 eenheden per maand

Markeren:

Security turnstile gate M3620-AB

Airport immigration inspection turnstile

Speed gate turnstile with AB control

Productbeschrijving

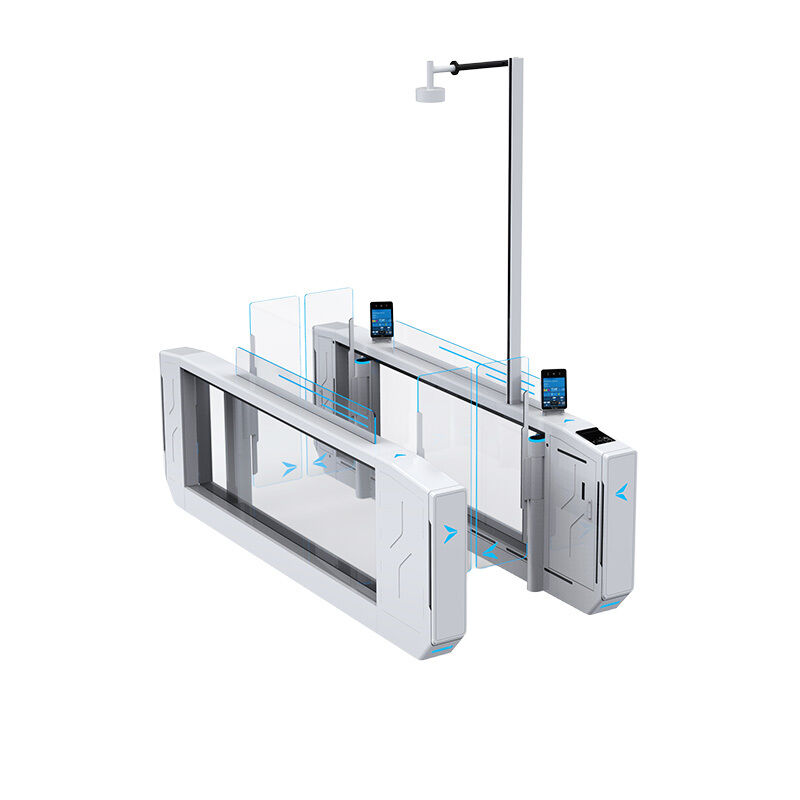

Security Airport Immigration Inspection Check AB Turnstile Gate M3620-AB

Product Overview

The M3620-AB Turnstile Gate is engineered for high-security airport immigration and inspection checkpoints, featuring advanced access control technology and robust construction for reliable performance in demanding environments.

Functions & Features

Reasonable and reliable design with low noise operation and extended service life
Advanced security functions including anti-tailgating and anti-reverse pass protection
Configurable card memory settings with "with memory" or "without memory" options
Automatic reset function - gate returns to locked state if not passed within set time
Infrared anti-clip protection during both open and running states
Compatible with multiple access technologies: IC, ID cards, scanning, and face recognition
Dual operation modes: open or closed configurations
Multiple working modes including two-way card reading and one-way card reading

Size Drawing

Technical Specifications

Parameter	Specification
Size	3200 × 210 × 1020 (mm)
Chassis	Top cover: 2.0mm cold roller with powder coating Housing: 2.0mm cold roller with powder coating Filling Panel: 10mm
Movement	Mechanism: Servo sliding gate Door panel: 10mm Transparent PC Pass Lane: 600-900mm
Electronic Control	Control board: Servo standard board + AB linkage Motor: Brushless servo 40:1 100W IR sensor: Light Curtain 64 Points + 20 pairs + 3D Visual Module Air switch: 2P
Power Supply	24V 500W / 12V 150W
Accessories	Connection cable: 5m 2×1.0m² RVV Network cable: 5m with crystal tips on both ends
Package	Pearl cotton: Foam liner Cardboard box: 3260 × 270 × 1080

Case Examples
